High-performance underwater monitoring technology at 50% of the cost of competitors
Hardware
Integration Solutions
MarineSitu offers high-performance underwater monitoring technology at 50% of the cost of competitors. Our cost-effective solutions ensure you get top-tier underwater monitoring without breaking your budget, making advanced technology more accessible than ever.
CC1
The MarineSitu CC1 camera system controller allows for easy integration and synchronization of one or two cameras and up to 8 high power LED lights. The auxiliary port allows for integration with other instruments, such as a pan/tilt motor, sonar, hydrophone, or ADCP. Key features are included to ensure survival without corrosion while maintaining a simple and elegant design to reduce system cost. When combined with the MarineSitu C1 cameras, L1 high power LED lights, and Vision image acquisition and data processing software, the system is highly configurable to meet the most demanding applications.

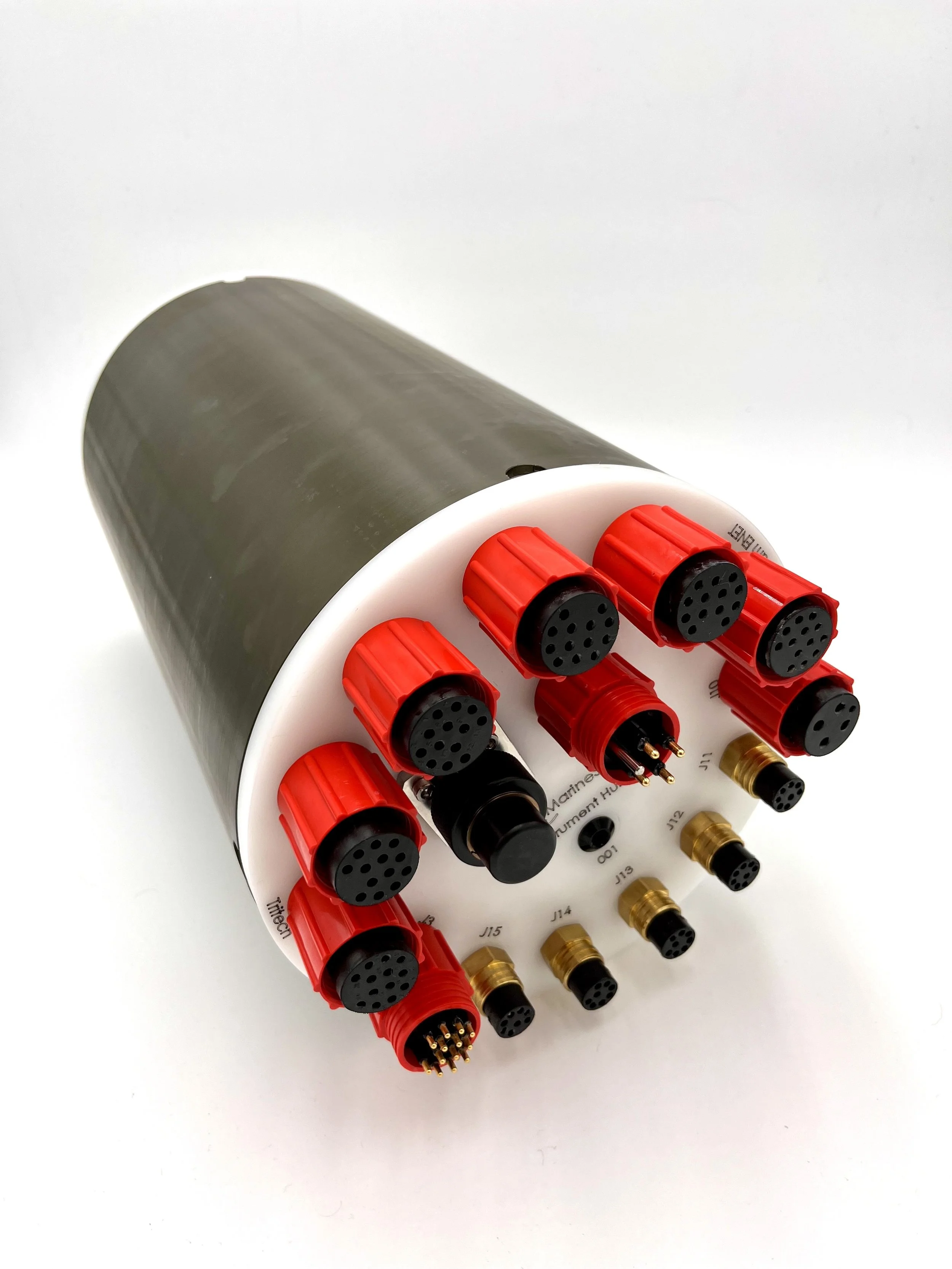

H1
The Integration Hub allows for multiple instruments to be connected to a single bottle and integrated to control power to each instrument and synchronize data streams. Our design has 10 individually controlled output channels with options to configure each channel to provide 12, 24, or 48 VDC power and either serial or Ethernet communications. The Hub then aggregates all of the data streams to a single fiber optic and 48 VDC input umbilical. Onboard monitoring includes the voltage and current for each output channel, as well as temperature and humidity sensors, and a 6 axis accelerometer and gyro compass.
Hardware Coming Soon
IC1 - Integrated Camera System
BC1 - Biofouling Controller
Ruggedized Battery Bottle
Custom Hardware Frames
Ruggedized Junction Box
Instrumentation Rotator
